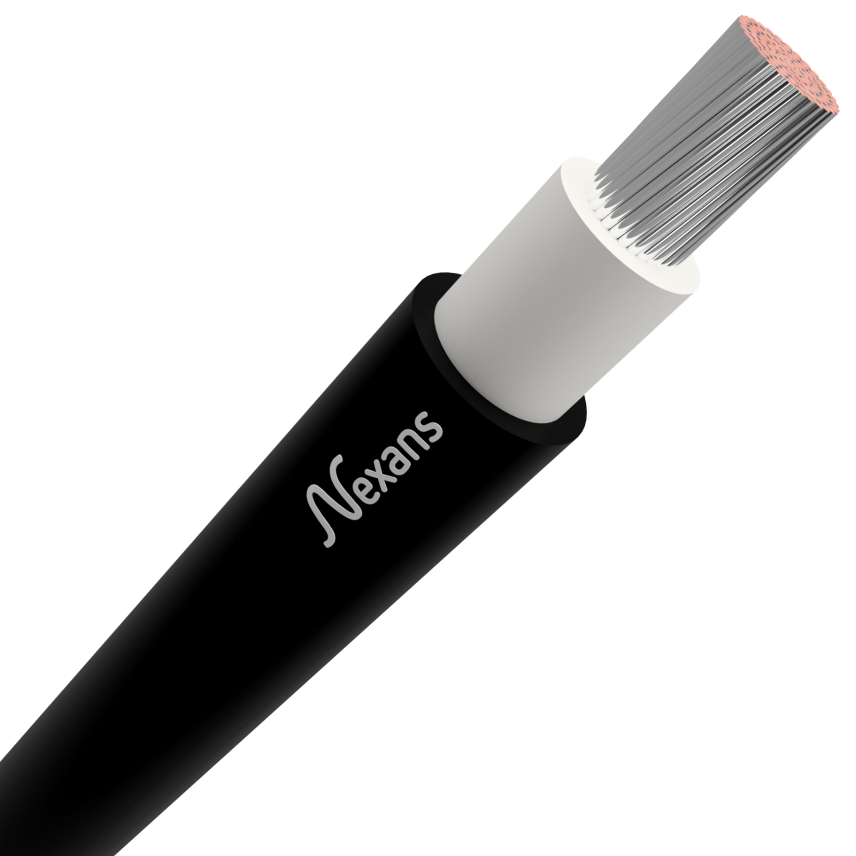

PhotoVoltaic / Solar Cable H1Z2Z2-K (1.5kV DC)
PhotoVoltaic / Solar Cable H1Z2Z2-K (1.5kV DC)
Solar cables are designed to comply with the international standards of the solar plants. They are dedicated to the photovoltaic system direct current (D.C.) side with a nominal D.C. voltage of 1.5 kV and a maximum D.C. voltage of 1.8 kV. These cables are suitable for permanent outdoor long-term use, under variable and harsh climate conditions. They are designed and tested to operate at a normal maximum conductor temperature of 90°C and for 20,000 hours up to 120°C. Therefore, the expected period use is more than 25 years under normal usage conditions (lifetime acc. to Arrhenius-Diagram).
Czytaj więcej
Opis
Opis
Standardy
-
ProductEN 50618
Application
These state-of-art AC 1.0/1.0 and DC 1.5kV cross-linked cables offer exceptional performances, easy installation and long-term reliability for solar plant. They link photovoltaic panels for Utility-Scale solar plants or rooftops, and also connect them to the array box (if existing), or potentially to the inverter.
Desgination: H1Z2Z2-K
Standard: EN 50618
Current Rating Temperature
Ambient temperature = 60°C
Maximum conductor temperature = 120°C
Water Resistant to AD8 According to EN 50525-2-21, Annex E
Construction
- Conductor: Flexible tinned copper, class 5 according to IEC 60228
- Insulation: Cross-linked halogen-free (XL-HFFR)
- Outer Sheath: Cross-linked halogen-free (XL-HFFR)
