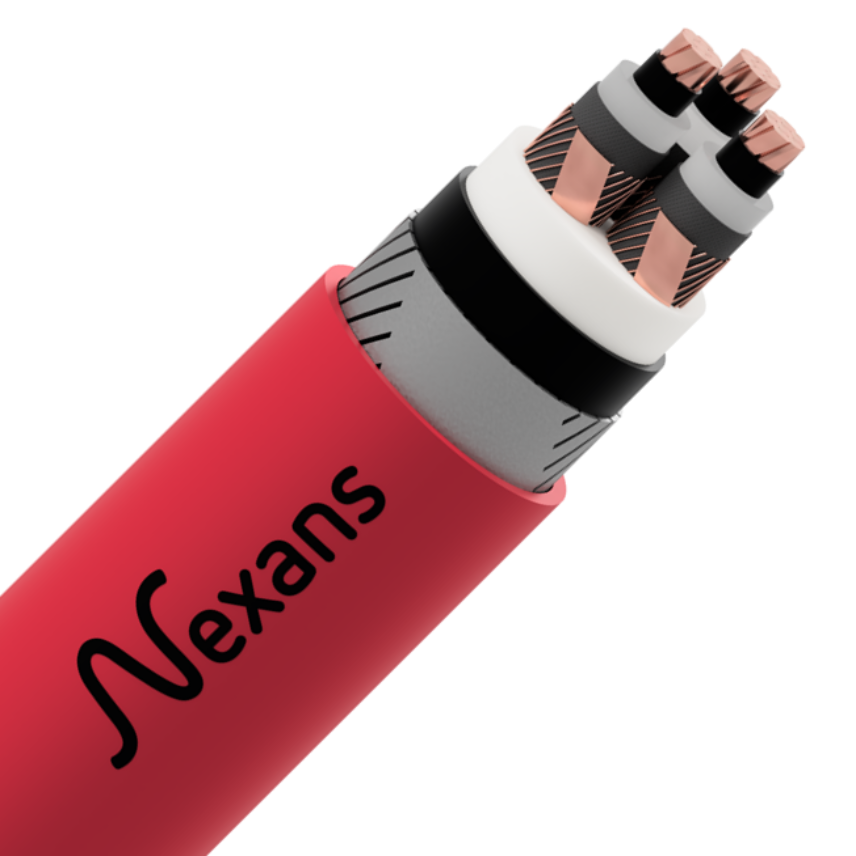

YXC8VZ3V (TSE) / N2XSEYFGY (IEC) 6/10 kV
YXC8VZ3V (TSE) / N2XSEYFGY (IEC) 6/10 kV
6/10 kV XLPE insulated flat steel wire armoured, three core cables with copper conductor
Czytaj więcejN2XSEYFGY 3x25/16 mm²
Nexans ref. 10518833
- Pakowanie: Drum (1000m)
- Przekrój poprzeczny przewodu: 25 mm²
- Permissible current rating buried/direct 20°C: 146 A
N2XSEYFGY 3x35/16 mm²
Nexans ref. 10531075
- Pakowanie: Drum (1000m)
- Przekrój poprzeczny przewodu: 35 mm²
- Permissible current rating buried/direct 20°C: 174 A
N2XSEYFGY 3x50/16 mm²
Nexans ref. 10531076
- Pakowanie: Drum (1000m)
- Przekrój poprzeczny przewodu: 50 mm²
- Permissible current rating buried/direct 20°C: 206 A
N2XSEYFGY 3x70/16 mm²
Nexans ref. 10531077
- Pakowanie: Drum (1000m)
- Przekrój poprzeczny przewodu: 70 mm²
- Permissible current rating buried/direct 20°C: 251 A
N2XSEYFGY 3x95/16 mm²
Nexans ref. 10519344
- Pakowanie: Drum (1000m)
- Przekrój poprzeczny przewodu: 95 mm²
- Permissible current rating buried/direct 20°C: 300 A
N2XSEYFGY 3x120/16 mm²
Nexans ref. 10531078
- Pakowanie: Drum (1000m)
- Przekrój poprzeczny przewodu: 120 mm²
- Permissible current rating buried/direct 20°C: 340 A
N2XSEYFGY 3x150/25 mm²
Nexans ref. 10531079
- Pakowanie: Drum (1000m)
- Przekrój poprzeczny przewodu: 150 mm²
- Permissible current rating buried/direct 20°C: 382 A
N2XSEYFGY 3x185/25 mm²
Nexans ref. 10518834
- Pakowanie: Drum (1000m)
- Przekrój poprzeczny przewodu: 185 mm²
- Permissible current rating buried/direct 20°C: 430 A
N2XSEYFGY 3x240/25 mm²
Nexans ref. 10526372
- Pakowanie: Drum (1000m)
- Przekrój poprzeczny przewodu: 240 mm²
- Permissible current rating buried/direct 20°C: 496 A
Opis
Opis
Standardy
-
ProductIEC 60502-2
-
NationalTS IEC 60502
Application
These are cables with low dielectric losses used in energy networks with sudden load changes where mechanical stresses expected. Laid in residential or industrial areas, underground or in ducts.
Construction
- Conductor:Copper
- Conductor screen:Semi-conducting compound(XLPE)
- Insulation:XLPE
- Insulation screen:Semi-conducting compound(XLPE)
- Semi-conducting tape:Crape paper
- Metallic screen:Concentric/copper wire+copper tape
- Filler:PVC
- Separation sheath:PVC
- Armour:Single layer galvanized flat steel wire + steel tape
- Outer sheath:PVC
Charakterystyka
Charakterystyka
Konstrukcja
Konstrukcja
Giętkość przewodu
Linka Klasa 2
Rozmiar, wielkość
Rozmiar, wielkość
Liczba żył
3
Parametry elektryczne
Parametry elektryczne
Napięcie nominalne Uo/U
6/10 kV
Rezystownośc cieplna gruntu wilgotnego
1 °K.m/W
Parametry mechaniczne
Parametry mechaniczne
Odporność mechaniczna na uderzenia
Dobra
Parametry fizyczne
Parametry fizyczne
Temperatura pracy, zakres
-20 ... 90 °C
Maksymalna temperatura żyły podczas zwarcia
250 °C
Współczynnik zgięcia podczas układania
12 (xD)
Maksymalna temperatura pracy żyły
90 °C
Fire safety characteristics
Fire safety characteristics
Zmniejszający palność
IEC 60332-1-2
