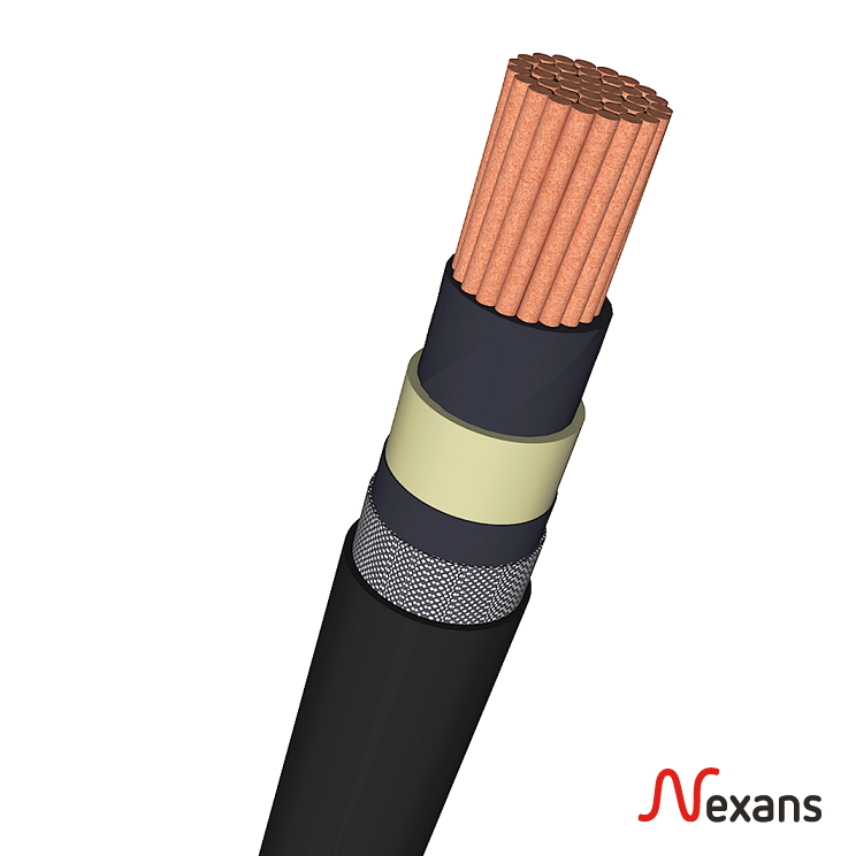

Nexans SIWO-KUL® S30 12 kV
Nexans SIWO-KUL® S30 12 kV
Designed for environments exposed to high thermal, electrical and mechanical stress, these flexible silicone cables incorporate a copper screen protected by a silicone sheath. They provide effective EMC shielding, outstanding flexibility and excellent resistance under demanding operating conditions. The patented co-extrusion technology of the semiconductive layers ensures homogeneous and controlled interfaces, maintaining partial discharges at an almost zero level despite environmental, mechanical or thermal stress. They are suitable for connecting rotating machines, transformers, power cabinets, converters and motor control systems, as well as for OEM applications in the wind, marine, railway and energy sectors.
Czytaj więcejOpis
Opis
Standardy
-
ProductIEC 60228
-
InstallationIEC 60092
-
TestIEC 60331; IEC 60332-1; IEC 60332-3-22; IEC 60332-3-24; IEC 60754-1; IEC 60754-2; IEC 61034
Applications
The SIWO-KUL® S30 12/20 kV cable range is specifically developed for:
- Connection of medium-voltage rotating machines and transformers
- Wiring of power cabinets, converters and motor controls
- Industrial installations exposed to high mechanical stress
- Wind, marine and railway OEM applications
Key Advantages
- Excellent flexibility, ideal for compact installations
- Outstanding thermal resistance (-55°C to +180°C continuous operation)
- Metallic braid shielding against electromagnetic interference
- Patented technology ensuring minimal partial discharge levels, even under severe stress
- Silicone outer sheath
- Very good resistance to oils, UV and chemical agents
- High durability for long service life
- International approvals and certifications
- Medium-voltage terminations and custom lengths available
Certificate
- Type approval certificate : LIoyds Register LR21139304TA
- Type approval certificate : BV Marine & Offshore 09555/D0 BV, file: ACE 01/723/01
By choosing the SIWO-KUL® range, you opt for a flexible, robust and durable cable designed to guarantee high performance in the most demanding environments.
