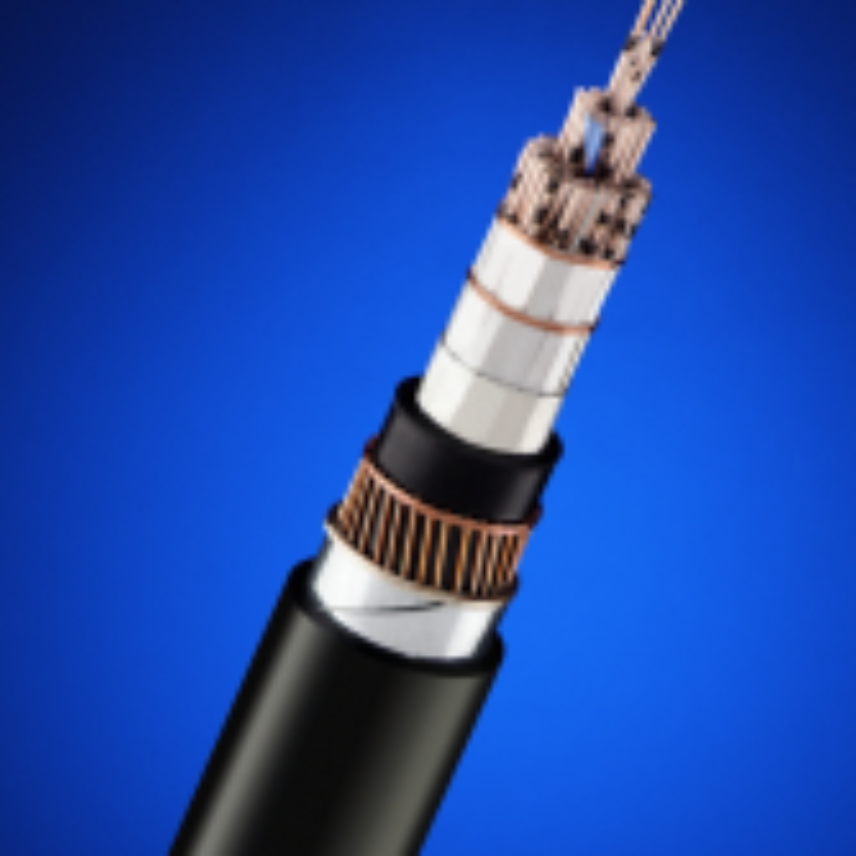

Y(ST)(ST)Y - PVC/IOSCR/PVC

Cable construction

1. Copper conductor stranded wire: 1.0 mm2 / 1.5 mm2

2.Insulation: PVC

Laying up: Twisted pairs / triads

3. Individual Screen: Polyester (PETP) tape / tinned stranded copper 0.5 mm2 / aluminium backed polyester foil / Polyester (PETP) tape

3. Overall Screen: Polyester (PETP) tape / tinned stranded copper 0.5 mm2 / aluminium backed polyester foil / Polyester (PETP) tape
4. Outer sheath : PVC - IS: Blue NIS: Grey

Marking:

NEXANS - Year - No. of cores & cross-section – Voltage rating - CPR class –+ meter marking

Core Identification

Pair : White - Black

Triad : White - Black - Red

(For pair/triad cables, number printing with their respective pair/triad number on the each core.)
